  WiNRADiO AX-81S Active HF Antenna
WiNRADiO AX-81S Active HF Antenna

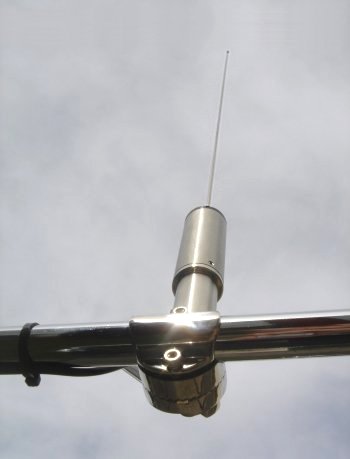

(Mounted using the optional WR-AC-RMB-114 base.)
The AX-81S antenna is a compact active HF antenna, ruggedized to suit harsh outdoor environments, and particularly suitable for marine environments. While it has been designed primarily as a marine antenna, it can be useful anywhere where good HF performance and reliability are required, and where space is at premium. The antenna is receive-only, and is suitable for professional as well as consumer applications.

The antenna covers the frequency range of 2 to 30 MHz, or 300 kHz to 50 MHz with somewhat reduced (but still excellent) performance.

While designed to be entirely general-purpose, the AX-81S antenna is especially suitable for the WiNRADiO G33EM marine receivers and G3 series of HF receivers.

The principal elements of the antenna are constructed of a low-carbon austenitic stainless steel that contains molybdenum. Austenitic (chromium and nickel content) stainless steels have high ductility (i.e. ability of a metal to plastically deform without breaking or fracturing), low yield stress and high ultimate tensile strength, when compared to a typical carbon steel. The 316L grade as used for the AX-81S antenna also offers an especially high degree of resistance to corrosion. The choice of materials and the durable construction of the AX-81S antenna will ensure trouble-free operation for many years.

The antenna was designed for rapid installation, with an easy-to-follow installation procedure supplied with the antenna.


Optional accessories

WR-AC-RMB-114 Heavy Duty Rail-Mount Antenna Base WR-AC-RMB-114 Heavy Duty Rail-Mount Antenna Base The WR-AC-RMB-114 heavy duty rail-mount antenna base has a single swivelling mount. It accepts any standard antenna with a 1" diameter standard #14 thread (such as the AX-81S antenna) and can be mounted on a railing of 7/8 to 1" diameter. Material is stainless steel 316 grade.

WR-AC-DMB-114 Heavy Duty Deck-Mount Antenna Base WR-AC-DMB-114 Heavy Duty Deck-Mount Antenna Base The WR-AC-DMB-114 heavy duty deck-mount antenna base has two swivelling mounts for complete adjustability. It accepts any standard antenna with a 1" diameter standard #14 thread (such as the AX-81S antenna). Material is stainless steel 316 grade.

WR-CMC-30 Common-Mode Choke The WR-CMC-30 Common-Mode Choke eliminates common-mode noise from the antenna feedline, resulting in a considerable increase of the received signal quality. Common-mode noise is generated by computers and other electric or electronic appliances, and can be a problem especially in the lower portions of HF spectrum.

The Common-Mode Choke can be also very useful to provide an alternative earthing point if the AX-81S antenna itself cannot be grounded due to its location, or its ground connection is inadequate.

WR-BT-650 Power Injector The WR-BT-650 Power Injector (Bias "T") provides a means of injecting DC power in a coaxial cable, to power the antenna from a remotely located power supply. It features a flat frequency response and low insertion loss.

Note that the Power Injector is not required if the AX-81S antenna is used with the WiNRADiO G33EM receiver which already provides suitable power for the antenna at the receiver's antenna input. For other applications, we recommend using WiNRADiO SF-41 range of low-noise power supplies.

Technical Specifications
Type Active HF antenna monopole
Frequency range 2 - 30 MHz @ 3 dB
(excellent performance from 300 kHz to 50 MHz)
Output IP2 +60 dBm
Output IP3 +30 dBm
Supply voltage 12 V DC (min 10 V, max 14 V),
supplied via the coaxial cable

Note: The WiNRADiO G33EM receiver supplies power for the AX-81S antenna at its antenna input, and no external power supply is needed. For any other applications we recommend using a WiNRADiO SF-41 Low-noise Linear Power Supply together with the WiNRADiO WR-BT-650 Power Injector.

Supply current 40 mA @ 12 V
Impedance 50 ohm
Connector BNC (concealed in body)
Operating temperature -20º to 80ºC
Active element length 1160 mm (3.8 ft)
Active element diameter 3 mm (0.118 in)
Body length 190 mm (7.45 in)
Body diameter 38 mm (1.45 in)
Mounting 1" diameter standard #14 thread
Overall length 1350 mm (4.43 ft)
Weight 550 g (1.21 lb)

Specifications are subject to change without notice due to continuous product development and improvement.



Interested? Please use our Rapid Response Form to register your interest in this product, or to request more information.

This product is also available via .   Order it now!
