  WiNRADiO AX-24B Discone Antenna
WiNRADiO AX-24B Discone Antenna The AX-24B antenna is a compact UHF/SHF omni-directional receiving antenna for professional surveillance and monitoring applications.

The antenna covers the frequency range of 400 to 4000 MHz.

While designed to be entirely general-purpose, the WiNRADiO AX-24B UHF/SHF Discone Antenna is especially suitable for use with the WiNRADiO G3 series of VHF/UHF receivers, especially for the G315 receivers working in conjunction with the AMFE™ Antenna Multiplexer and Frequency Extender.

Its durable construction from high-grade stainless steel, alloy and aluminium will ensure trouble-free operation for many years. The antenna was designed for rapid and easy assembly.


Options

Clamps for AX-71C antenna Mast mounting clamps are not supplied as standard, and can be ordered as a separate option. The ordering code for these heavy-duty galvanized mounting clamps is WR-AC-MC-01.

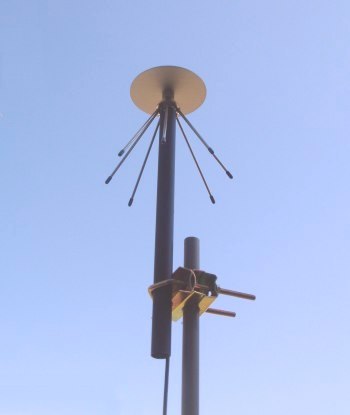

WR-AC-MC-HEA Horizontal Extension Arm. Used for offset mast mounting as shown in the adjacent picture.

WR-AC-MC-UMC Universal Mounting Clamp. Used for offset mast mounting.
This antenna is suitable for the following WiNRADiO receivers:

 WiNRADiO WR-G305e
 WiNRADiO WR-G305i
 WiNRADiO WR-G315e
 WiNRADiO WR-G315i

See also:

 WiNRADiO AMFE™

Technical Specifications
Type Wide-band discone RX antenna
Frequency range 400 - 4000 MHz
Gain 2.0 dBi typ.
Impedance 50 ohm
Connector UHF
Operating temperature -30º to 60ºC
Mounting tube diameter 25 mm (1")
Mounting tube length 400 mm (15.7")
Length of sloping radials 162 mm (6.4")
Diameter of disc element 125 mm (5")
Overall height 460 mm (18.1")
Weight 503 g (1.1 lb)

Specifications are subject to change without notice due to continuous product development and improvement.



Interested? Please use our Rapid Response Form to register your interest in this product, or to request more information.
